Panasonic Electronic Components

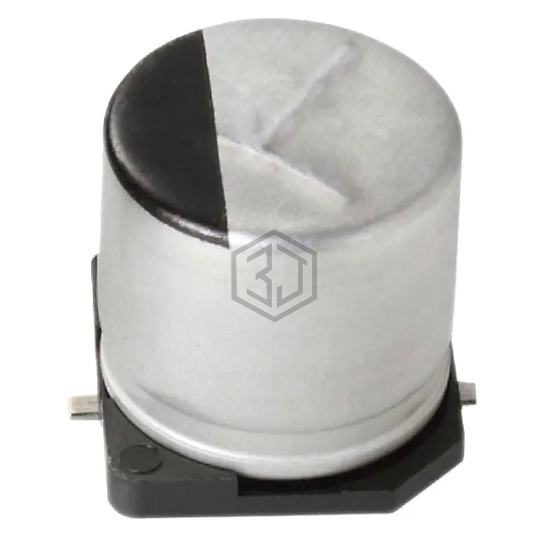

CAP ALUM 1200UF 20% 16V SMD
EEE-FT1C122UP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1200UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 1,116
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 60mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 833 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.19 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1E122SV | Panasonic Electronic Components | CAP ALUM 1200UF 20% 25V SMD | 84% | View |
| MAL214699009E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 35V SMD | 70% | View |
| EEE-FN1A122UL | Panasonic Electronic Components | CAP ALUM 1200UF 20% 10V SMD | 70% | View |
| EEE-FPA122UAL | Panasonic Electronic Components | CAP ALUM 1200UF 20% 10V SMD | 70% | View |
| MAL224699009E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 35V SMD | 70% | View |
| MAL214699113E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 50V SMD | 68% | View |
