Panasonic Electronic Components
CAP ALUM 1500UF 20% 10V SMD

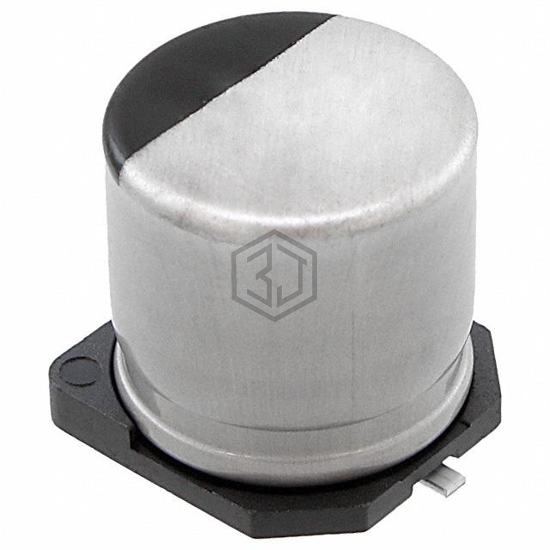

EEE-FT1A152AP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1500UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 8,559
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 60mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 833 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.19 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCM1A152MNL1GS | Nichicon | CAP ALUM 1500UF 20% 10V SMD | 92% | View |
| EEE-FN1A152UL | Panasonic Electronic Components | CAP ALUM 1500UF 20% 10V SMD | 84% | View |
| EEE-FN1A152UV | Panasonic Electronic Components | CAP ALUM 1.5UF 20% 10V SMD | 84% | View |
| UCD1A152MCL1GS | Nichicon | CAP ALUM 1500UF 20% 10V SMD | 81% | View |
| EEE-FK0J152GP | Panasonic Electronic Components | CAP ALUM 1500UF 20% 6.3V SMD | 72% | View |
| MAL214099616E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V SMD | 71% | View |
