Panasonic Electronic Components
CAP ALUM 2200UF 20% 6.3V SMD

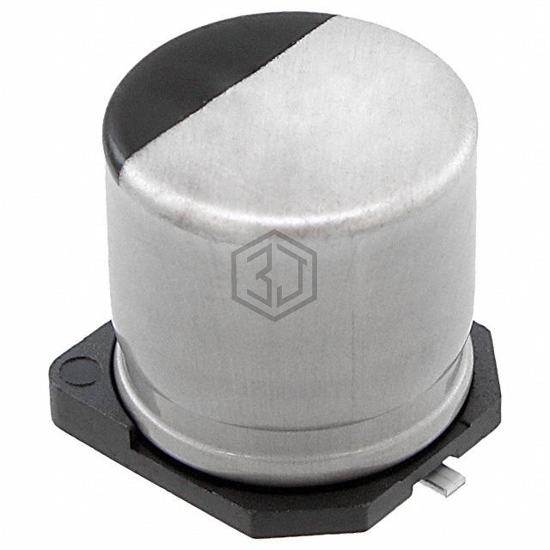

EEE-FT0J222GP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2200UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 9,671
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 60mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 833 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.19 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVY100ARA222MKG5S | United Chemi-Con | CAP ALUM 2200UF 20% 10V SMD | 77% | View |
| MAL215097414E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 10V SMD | 76% | View |
| EMVY160GDA222MLH0S | United Chemi-Con | CAP ALUM 2200UF 20% 16V SMD | 75% | View |
| EMVY160GDA222MMH0S | United Chemi-Con | CAP ALUM 2200UF 20% 16V SMD | 71% | View |
| EEE-FK1E222AM | Panasonic Electronic Components | CAP ALUM 2200UF 20% 25V SMD | 57% | View |
| EEE-FK1V222SM | Panasonic Electronic Components | CAP ALUM 2200UF 20% 35V SMD | 51% | View |
Submit your RFQ for EEE-FT0J222GP and get a quote within 24 hours.
