Panasonic Electronic Components
CAP ALUM 560UF 20% 25V SMD

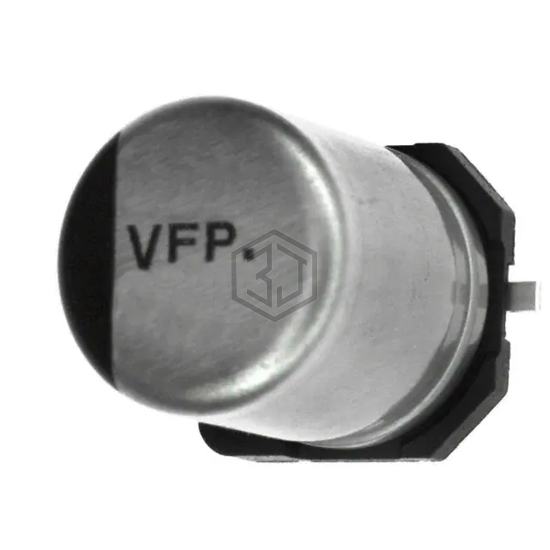

EEE-FPE561UAP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 3,772
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 552.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FT1E561UP | Panasonic Electronic Components | CAP ALUM 560UF 20% 25V SMD | 98% | View |
| EEE-FPE561UAL | Panasonic Electronic Components | CAP ALUM 560UF 20% 25V SMD | 98% | View |
| EEE-FT1E561UV | Panasonic Electronic Components | CAP ALUM 560UF 20% 25V SMD | 98% | View |
| UCL1E561MNL1GS | Nichicon | CAP ALUM 560UF 20% 25V SMD | 94% | View |
| EEE-FK1V561SL | Panasonic Electronic Components | CAP ALUM 560UF 20% 35V SMD | 90% | View |
| UCM1V561MNL1GS | Nichicon | CAP ALUM 560UF 20% 35V SMD | 80% | View |
Submit your RFQ for EEE-FPE561UAP and get a quote within 24 hours.
