Panasonic Electronic Components

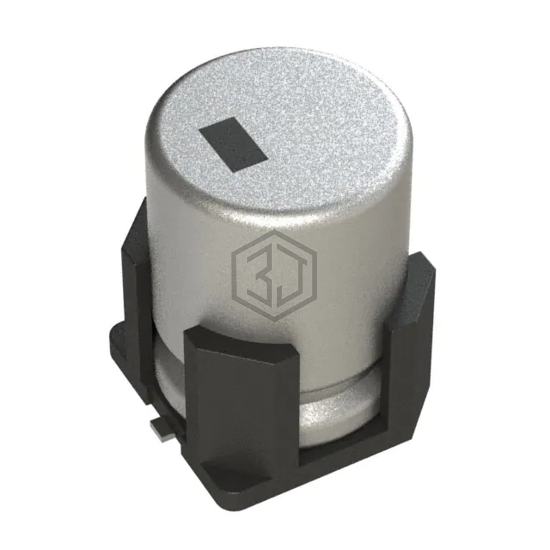

CAP ALUM 100UF 20% 16V SMD
EEE-FPC101XAV is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 5,916
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 160mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 390 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.327" (8.30mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWG1V101MNL1GS | Nichicon | CAP ALUM 100UF 20% 35V SMD | 73% | View |
| EEE-FP1C101AL | Panasonic Electronic Components | CAP ALUM 100UF 20% 16V SMD | 67% | View |
| 35SGV100M10X10.5 | Rubycon | CAP ALUM 100UF 20% 35V SMD | 61% | View |
| UUX1V101MNL6GS | Nichicon | CAP ALUM 100UF 20% 35V SMD | 60% | View |
| EEV107M016A9GAA | KEMET | CAP ALUM 100UF 20% 16V SMD | 58% | View |
| VZH101M1ETR-0806S | SURGE | CAP ALUM 100UF 20% 25V SMD | 57% | View |
