Panasonic Electronic Components

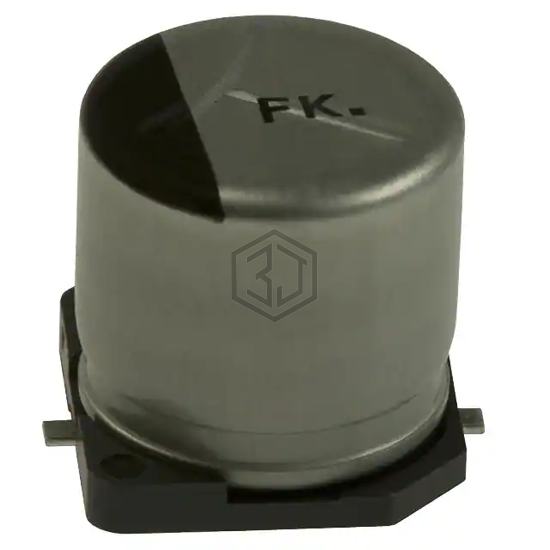

CAP ALUM 470UF 20% 25V SMD
EEE-FK1E471GP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 2,743
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 637.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FT1E471AL | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V SMD | 97% | View |
| 477AXZ025M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 25V SMD | 90% | View |
| 25JGV470M10X10.5 | Rubycon | CAP ALUM 470UF 20% 25V SMD | 85% | View |
| AEH1213471M025R | KYOCERA AVX | ALUMINUM CAP | 84% | View |
| VUJ471M1CTR-1313S | SURGE | CAP ALUM 470UF 20% 16V SMD | 78% | View |
| EEE-FK1K471AM | Panasonic Electronic Components | CAP ALUM 470UF 20% 80V SMD | 71% | View |
Submit your RFQ for EEE-FK1E471GP and get a quote within 24 hours.
