Panasonic Electronic Components

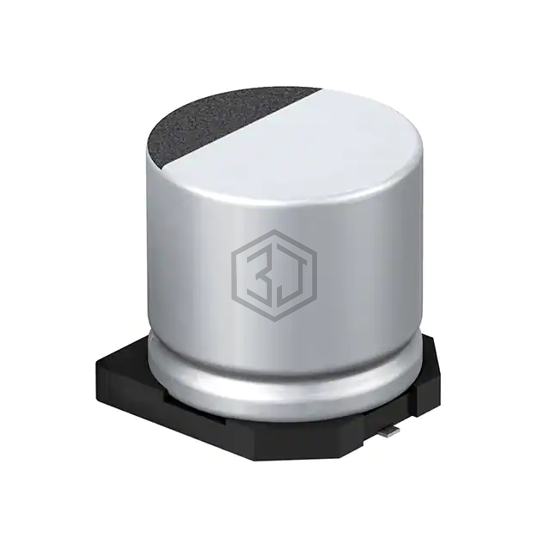

CAP ALUM 5600UF 20% 16V SMD
EEE-FK1C562SV is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 5600UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.545 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.06 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1C562SM | Panasonic Electronic Components | CAP ALUM 5600UF 20% 16V SMD | 100% | View |
| EEE-FK1A562SV | Panasonic Electronic Components | CAP ALUM 5600UF 20% 10V SMD | 79% | View |
| EEE-FK1A562SM | Panasonic Electronic Components | CAP ALUM 5600UF 20% 10V SMD | 79% | View |
| UCM1E512MNJ1MS | Nichicon | CAP ALUM 5100UF 20% 25V SMD | 73% | View |
| UUE1A472MNS1MS | Nichicon | CAP ALUM 4700UF 20% 10V SMD | 69% | View |
| MAL225099416E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 10V SMD | 67% | View |
