Panasonic Electronic Components

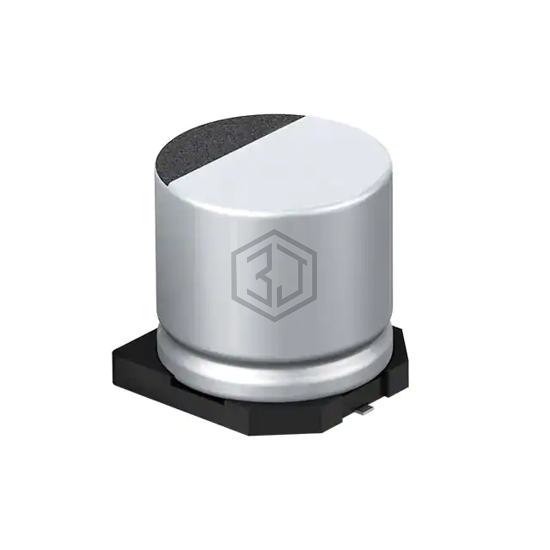

CAP ALUM 100UF 20% 16V SMD
EEE-FK1C101SR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 9,987
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 700mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 104 mA @ 120 Hz |
| Ripple Current @ High Frequency | 160 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16SGV100M6.3X8 | Rubycon | CAP ALUM 100UF 20% 16V SMD | 94% | View |
| EMZA160ADA101MF61G | United Chemi-Con | CAP ALUM 100UF 20% 16V SMD | 88% | View |
| AVEZ107M10D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 10V SMD | 78% | View |
| UCL1C101MCL1GS | Nichicon | CAP ALUM 100UF 20% 16V SMD | 76% | View |
| UUD1E101MCL1GS | Nichicon | CAP ALUM 100UF 20% 25V SMD | 66% | View |
| VUJ101M1VTR-1010S | SURGE | CAP ALUM 100UF 20% 35V SMD | 62% | View |
Submit your RFQ for EEE-FK1C101SR and get a quote within 24 hours.
