Panasonic Electronic Components

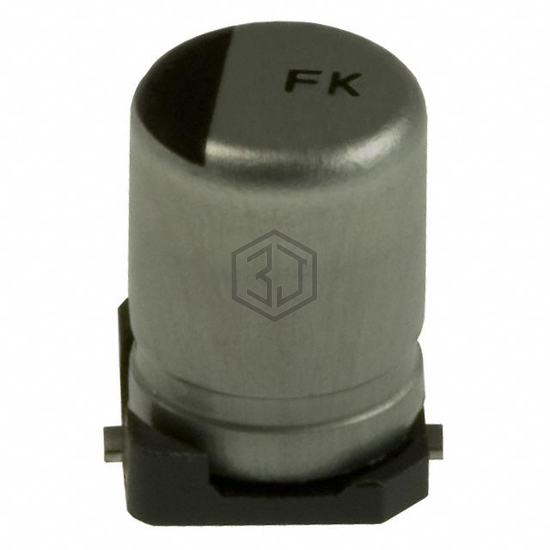

CAP ALUM 33UF 20% 10V SMD
EEE-FK1A330UR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 33UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 1,452
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 67.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 100 kHz |
| Impedance | 1.35 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VEZ330M1ATR-0505S | Surge | CAP ALUM 10V POLAR | 89% | View |
| UWF1C330MCL1GB | Nichicon | CAP ALUM 33UF 20% 16V SMD | 79% | View |
| MVY6.3VC33RME55TP | United Chemi-Con | CAP ALUM 33UF 20% 6.3V SMD | 78% | View |
| VEZ330M0JTR-0505S | Surge | CAP ALUM 6.3V POLAR | 77% | View |
| VZH330M1ATR-0506S | Surge | CAP ALUM 10V POLAR | 74% | View |
| 865080343005 | Würth Elektronik | CAP ALUM 33UF 20% 16V SMD | 51% | View |
Submit your RFQ for EEE-FK1A330UR and get a quote within 24 hours.
