Panasonic Electronic Components

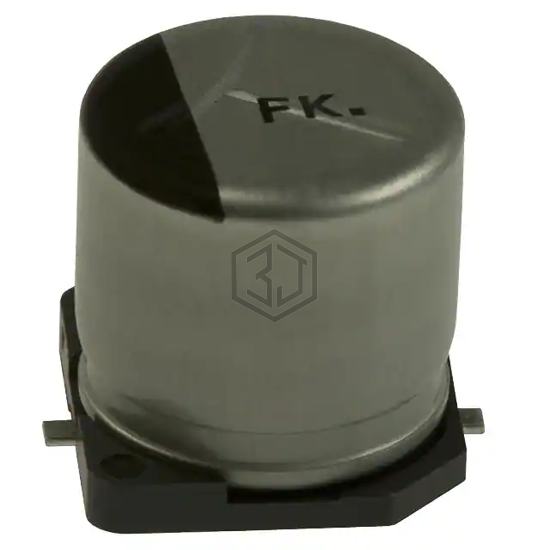

CAP ALUM 1000UF 20% 10V SMD
EEE-FK1A102P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 9,508
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 637.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FZ108M010HGKTB | Aillen | CAP ALUM 1000UF 20% 10V SMD | 100% | View |
| FZ108M010HGKTA | Aillen | CAP ALUM 1000UF 20% 10V SMD | 98% | View |
| FZ108M025HPNTA | Aillen | CAP ALUM 1000UF 20% 25V SMD | 74% | View |
| 865060462010 | Würth Elektronik | CAP ALUM 1000UF 20% 25V SMD | 70% | View |
| AHA108M06G24B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 6.3V SMD | 69% | View |
| EEE-FK0J102AP | Panasonic Electronic Components | CAP ALUM 1000UF 20% 6.3V SMD | 63% | View |
Submit your RFQ for EEE-FK1A102P and get a quote within 24 hours.
