Panasonic Electronic Components

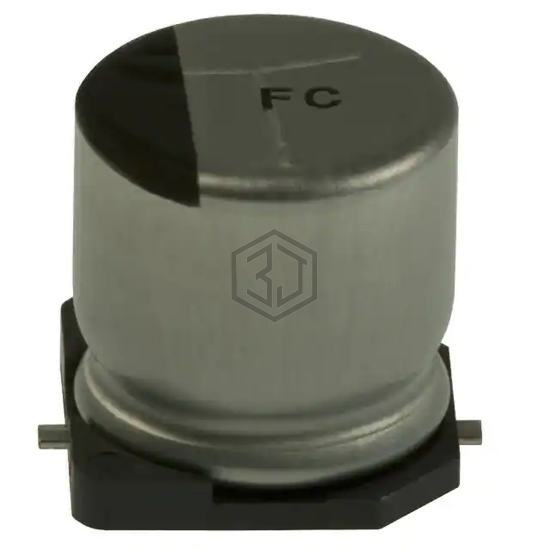

CAP ALUM 47UF 20% 50V SMD
EEE-FC1H470P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 7,581
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 375 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
| Impedance | 300 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEE-FC1H470P is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50SKV47M6.3X8 | Rubycon | CAP ALUM 47UF 20% 50V SMD | 100% | View |
| EEE-FP1V470AL | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V SMD | 61% | View |
| EEE-FK1V470V | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V SMD | 54% | View |
| EDT476M050S9MAA | KEMET | CAP ALUM 47UF 20% 50V SMD | 51% | View |
| EEE-FT1H470AL | Panasonic Electronic Components | CAP ALUM 47UF 20% 50V SMD | 51% | View |
| EMZA350ADA470MF61G | United Chemi-Con | CAP ALUM 47UF 20% 35V SMD | 50% | View |
Submit your RFQ for EEE-FC1H470P and get a quote within 24 hours.
