Panasonic Electronic Components

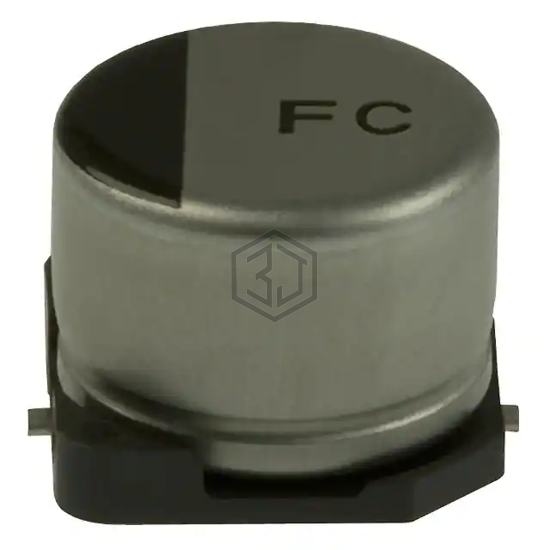

CAP ALUM 22UF 20% 50V SMD
EEE-FC1H220P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 7,117
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 90 mA @ 120 Hz |
| Ripple Current @ High Frequency | 120 mA @ 100 kHz |
| Impedance | 700 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEE-FC1H220P is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AFC226M35D16B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 35V SMD | 80% | View |
| AFK226M80F24B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 80V SMD | 77% | View |
| ATB226M035 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 35V SMD | 76% | View |
| EEV226M016A9DAA | KEMET | CAP ALUM 22UF 20% 16V SMD | 67% | View |
| AVES226M35D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 35V SMD | 62% | View |
| UWT1V220MCL1GB | Nichicon | CAP ALUM 22UF 20% 35V SMD | 55% | View |
Submit your RFQ for EEE-FC1H220P and get a quote within 24 hours.
