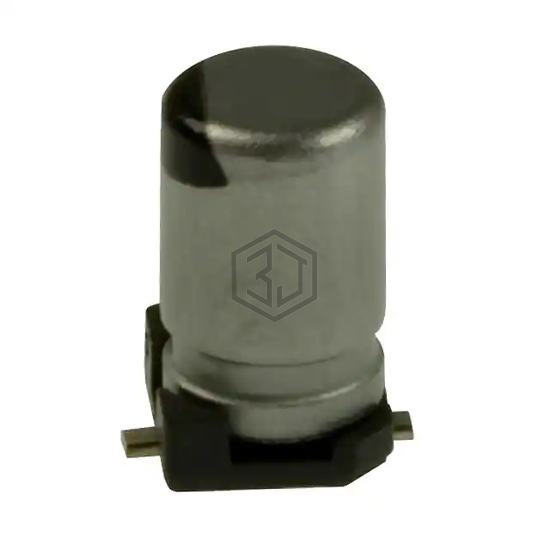

Panasonic Electronic Components
CAP ALUM 1UF 20% 50V SMD
EEE-1HS010SR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 8,943
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 13.6 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.130" L x 0.130" W (3.30mm x 3.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEE-1HS010SR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVE500ARA1R0MD55G | Chemi-Con | CAP ALUM 1UF 20% 50V SMD | 100% | View |
| RVS-50V010MD55U-R | Elna America | CAP ALUM 1UF 20% 50V SMD | 91% | View |
| 105SVH050MCR | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1UF 20% 50V SMD | 86% | View |
| UZT1H010MCL1GB | Nichicon | CAP ALUM 1UF 20% 50V SMD | 78% | View |
| EMVY500ADA1R0MD55G | United Chemi-Con | CAP ALUM 1UF 20% 50V SMD | 75% | View |
| UWG1H010MCL1GB | Nichicon | CAP ALUM 1UF 20% 50V SMD | 66% | View |
Submit your RFQ for EEE-1HS010SR and get a quote within 24 hours.
