Panasonic Electronic Components
CAP ALUM 220UF 20% 25V SMD

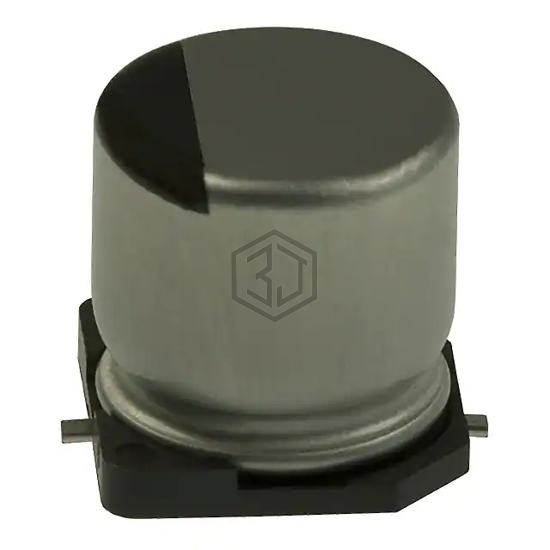

EEE-1EA221AP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 4,428
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 310 mA @ 120 Hz |
| Ripple Current @ High Frequency | 527 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEE-1EA221AP is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECE-V1EA221UP | Panasonic Electronic Components | CAP ALUM 220UF 20% 25V SMD | 90% | View |
| SHT25V221MJ102 | Meritek | CAP ALUM 220UF 20% 25V SMD | 90% | View |
| MAL214097601E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 25V SMD | 87% | View |
| EDT227M035S9PAA | KEMET | CAP ALUM 220UF 20% 35V SMD | 60% | View |
| 865060345007 | Würth Elektronik | CAP ALUM 220UF 20% 16V SMD | 59% | View |
| EEE-FP1H221AP | Panasonic Electronic Components | CAP ALUM 220UF 20% 50V SMD | 51% | View |
Submit your RFQ for EEE-1EA221AP and get a quote within 24 hours.
