Panasonic Electronic Components
CAP ALUM 22UF 20% 25V SMD

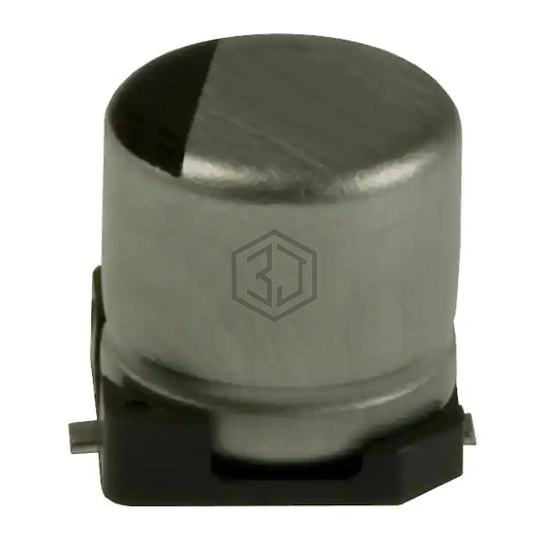

EEE-1EA220WAR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 9,582
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 35 mA @ 120 Hz |
| Ripple Current @ High Frequency | 59.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25SEV22M5X5.5 | Rubycon | CAP ALUM 22UF 20% 25V SMD | 100% | View |
| EEE-HAV220WAR | Panasonic Electronic Components | CAP ALUM 22UF 20% 35V SMD | 90% | View |
| EMVY6R3ADA220MD55G | United Chemi-Con | CAP ALUM 22UF 20% 6.3V SMD | 70% | View |
| 226AXZ010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 10V SMD | 67% | View |
| UUL1H220MCL1GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 66% | View |
| BMVK6R3ADA220ME60G | United Chemi-Con | CAP ALUM 22UF 20% 6.3V SMD | 60% | View |
