Panasonic Electronic Components

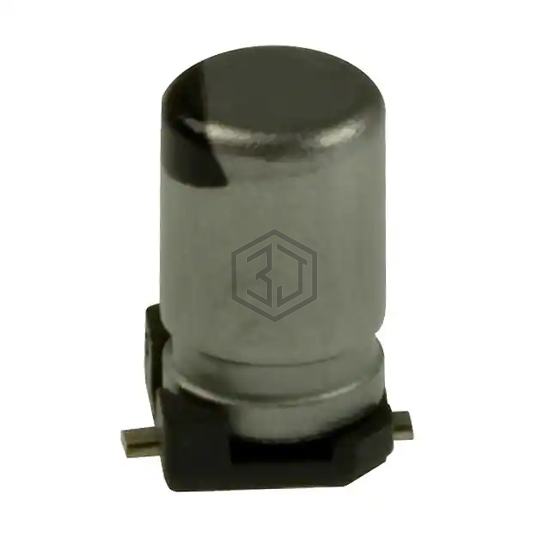

CAP ALUM 22UF 20% 6.3V SMD
EEE-0JS220WR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 8,513
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 20 mA @ 120 Hz |
| Ripple Current @ High Frequency | 34 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.130" L x 0.130" W (3.30mm x 3.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEE-0JS220WR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALSECA00AB222BARK | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 6.3V SMD | 100% | View |
| 2222 085 63229 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 6.3V SMD | 96% | View |
| UWT0G220MCL1GB | Nichicon | CAP ALUM 22UF 20% 4V SMD | 83% | View |
| EEE-FN0J220R | Panasonic Electronic Components | CAP ALUM 22UF 20% 6.3V SMD | 51% | View |
| 226SML025MD5 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 25V SMD | 51% | View |
| 35TXV22M6.3X6.1 | Rubycon | CAP ALUM 22UF 20% 35V SMD | 51% | View |
Submit your RFQ for EEE-0JS220WR and get a quote within 24 hours.
