Panasonic Electronic Components
CAP 1F -20% +80% 5.5V T/H

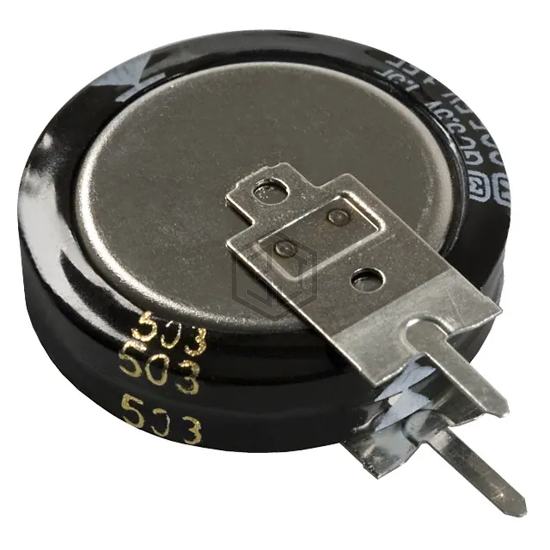

EEC-S5R5V105 is a Electric Double Layer Capacitors (EDLC), Supercapacitors manufactured by Panasonic Electronic Components. CAP 1F -20% +80% 5.5V T/H. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 70°C, voltage - rated 5.5 V, package / case Axial, Can - Vertical.
In Stock: 7,343
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1 F |
| Tolerance | -20%, +80% |
| Voltage - Rated | 5.5 V |
| ESR (Equivalent Series Resistance) | 30Ohm @ 1kHz |
| Lifetime @ Temp. | 1000 Hrs @ 70°C |
| Termination | PC Pins |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can - Vertical |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.748" Dia (19.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Operating Temperature | -25°C ~ 70°C |
EEC-S5R5V105 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DGH255Q5R5 | Cornell Dubilier / Illinois Capacitor | CAPACITOR 2.5F -10% +30% 5.5V TH | 100% | View |
| FS0H223ZF | KEMET | CAP 22MF -20% +80% 5.5V T/H | 100% | View |
| RSCBN3345R5G07014T | Elna America | CAP 330MF -20% +80% 5.5V T/H | 100% | View |
| FM0H473ZF | KEMET | CAP 47MF -20% +80% 5.5V T/H | 100% | View |
| EDC105Z5R5H | Cornell Dubilier Electronics (CDE) | CAP 1F -20% +80% 5.5V T/H | 100% | View |
| KW-5R5C104-R | Eaton - Electronics Division | CAP 100MF -20% +80% 5.5V T/H | 100% | View |
Submit your RFQ for EEC-S5R5V105 and get a quote within 24 hours.
