Panasonic Electronic Components
CAP 1F -20% +80% 5.5V T/H

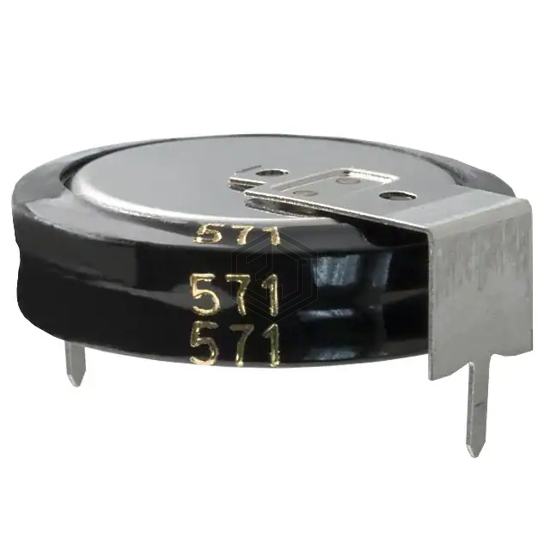

EEC-S5R5H105 is a Electric Double Layer Capacitors (EDLC), Supercapacitors manufactured by Panasonic Electronic Components. CAP 1F -20% +80% 5.5V T/H. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 70°C, voltage - rated 5.5 V, package / case Axial, Can - Horizontal.
In Stock: 3,988
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1 F |
| Tolerance | -20%, +80% |
| Voltage - Rated | 5.5 V |
| ESR (Equivalent Series Resistance) | 30Ohm @ 1kHz |
| Lifetime @ Temp. | 1000 Hrs @ 70°C |
| Termination | PC Pins |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can - Horizontal |
| Lead Spacing | 0.787" (20.00mm) |
| Size / Dimension | 0.748" Dia (19.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Operating Temperature | -25°C ~ 70°C |
EEC-S5R5H105 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEC-SE0H224N | Panasonic Electronic Components | CAP 220MF -20% +80% 5.5V T/H | 100% | View |
| EEC-S5R5H105N | Panasonic Electronic Components | CAP 1F -20% +80% 5.5V T/H | 100% | View |
| EEC-S0HD224V | Panasonic Electronic Components | CAP 220MF -20% +80% 5.5V T/H | 100% | View |
| EDLSD104V5R5C | Cornell Dubilier Electronics (CDE) | CAP 100MF 5.5V T/H | 100% | View |
| EEC-F5R5U155N | Panasonic Electronic Components | CAP 1.5F -20% +80% 5.5V T/H | 100% | View |
| EEC-RF0H684 | Panasonic Electronic Components | CAP 680MF -20% +80% 5.5V T/H | 100% | View |
Submit your RFQ for EEC-S5R5H105 and get a quote within 24 hours.
