Panasonic Electronic Components
CAP 22F -20% +40% 2.3V T/H

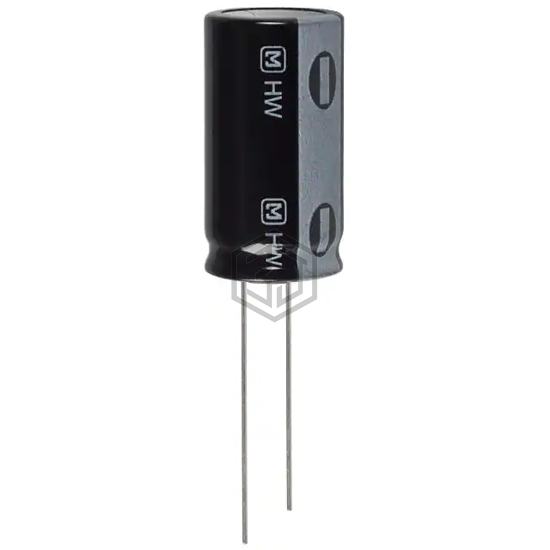

EEC-HW0D226 is a Electric Double Layer Capacitors (EDLC), Supercapacitors manufactured by Panasonic Electronic Components. CAP 22F -20% +40% 2.3V T/H. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 70°C, voltage - rated 2.3 V, package / case Radial, Can.
In Stock: 8,483
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 F |
| Tolerance | -20%, +40% |
| Voltage - Rated | 2.3 V |
| ESR (Equivalent Series Resistance) | 100mOhm @ 1kHz |
| Lifetime @ Temp. | 1000 Hrs @ 70°C |
| Termination | PC Pins |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Operating Temperature | -25°C ~ 70°C |
EEC-HW0D226 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 807DCR2R3S4EK | Cornell Dubilier / Illinois Capacitor | CAP 800F -20% +50% 2.3V T/H | 100% | View |
| 306DCR2R3STV | Cornell Dubilier / Illinois Capacitor | CAP 30F -20% +50% 2.3V T/H | 100% | View |
| 127DCR2R3SLZ | Cornell Dubilier / Illinois Capacitor | CAP 120F -20% +50% 2.3V T/H | 100% | View |
| HB1840-2R5606-R | Eaton - Electronics Division | CAP 60F -10% +30% 2.5V T/H | 88% | View |
| DZ-2R5D275G5T | Elna America | CAP 2.7F -20% +80% 2.5V T/H | 88% | View |
| DZ-2R5D665Z6T | Elna America | CAP 6.6F -20% +80% 2.5V T/H | 88% | View |
Submit your RFQ for EEC-HW0D226 and get a quote within 24 hours.
