Panasonic Electronic Components

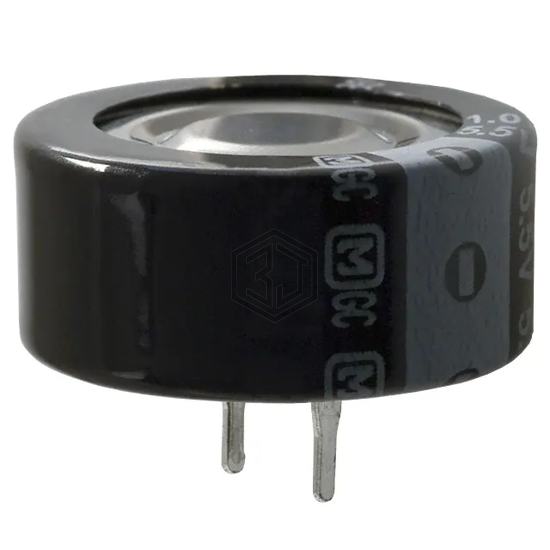

CAP 680MF -20% +80% 5.5V T/H
EEC-F5R5H684 is a Electric Double Layer Capacitors (EDLC), Supercapacitors manufactured by Panasonic Electronic Components. CAP 680MF -20% +80% 5.5V T/H. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 5.5 V, package / case Radial, Can.
In Stock: 6,251
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 mF |
| Tolerance | -20%, +80% |
| Voltage - Rated | 5.5 V |
| ESR (Equivalent Series Resistance) | 50Ohm @ 1kHz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Termination | PC Pins |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.846" Dia (21.50mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
| Operating Temperature | -25°C ~ 85°C |
EEC-F5R5H684 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DGH255Q5R5 | Cornell Dubilier / Illinois Capacitor | CAPACITOR 2.5F -10% +30% 5.5V TH | 100% | View |
| KW-5R5C104-R | Eaton - Electronics Division | CAP 100MF -20% +80% 5.5V T/H | 100% | View |
| EEC-F5R5H474N | Panasonic Electronic Components | CAP 470MF -20% +80% 5.5V T/H | 100% | View |
| EEC-F5R5H104N | Panasonic Electronic Components | CAP 100MF -20% +80% 5.5V T/H | 100% | View |
| EEC-F5R5H473 | Panasonic Electronic Components | CAP 47MF -20% +80% 5.5V T/H | 100% | View |
| EEC-RF0H105 | Panasonic Electronic Components | CAP 1F -20% +80% 5.5V T/H | 100% | View |
Submit your RFQ for EEC-F5R5H684 and get a quote within 24 hours.
