Panasonic Electronic Components
CAP ALUM 0.47UF 20% 50V RADIAL

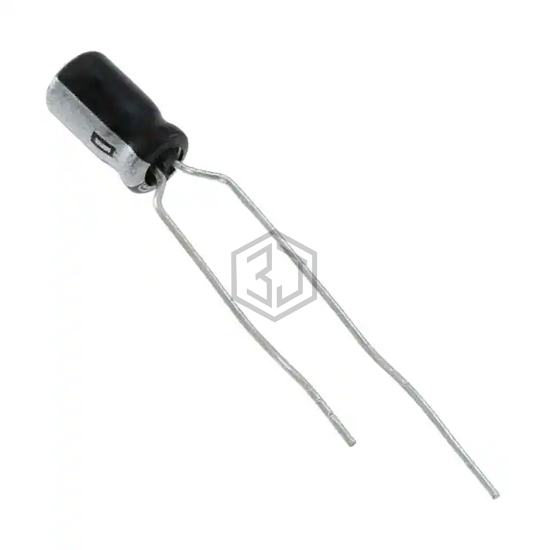

EEA-GA1HR47B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 0.47UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,852
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 7.75 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
EEA-GA1HR47B is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPV1HR47MFD1TD | Nichicon | CAP ALUM 0.47UF 20% 50V RADIAL | 100% | View |
| 50PX0.47MEFCT15X11 | Rubycon | CAP ALUM 0.47UF 20% 50V RADIAL | 100% | View |
| EEA-GA1HR47 | Panasonic Electronic Components | CAP ALUM 0.47UF 20% 50V RADIAL | 100% | View |
| UST1HR47MDD1TE | Nichicon | CAP ALUM 0.47UF 20% 50V RADIAL | 99% | View |
| ECA-1HHGR47B | Panasonic Electronic Components | CAP ALUM 0.47UF 20% 50V RADIAL | 94% | View |
| UMT1HR47MDD | Nichicon | CAP ALUM 0.47UF 20% 50V RADIAL | 86% | View |
Submit your RFQ for EEA-GA1HR47B and get a quote within 24 hours.
