Panasonic Electronic Components
CAP FILM 8200PF 5% 3KVDC RADIAL

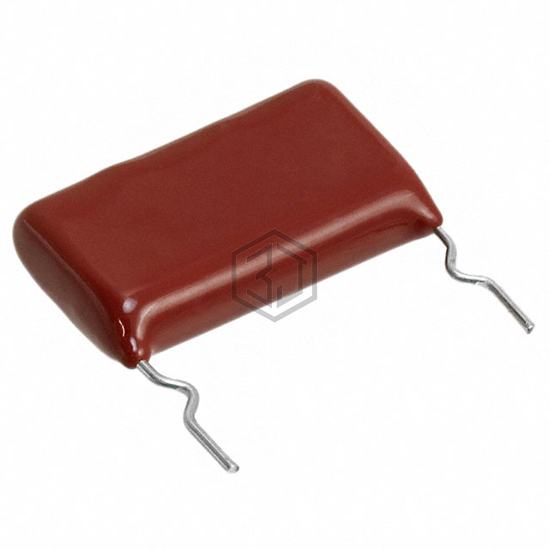

ECW-HC3F822JQ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 8200PF 5% 3KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 3000V (3kV), package / case Radial.
In Stock: 6,439
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 1060V (1.06kV) |
| Voltage Rating - DC | 3000V (3kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.016" L x 0.295" W (25.80mm x 7.50mm) |
| Height - Seated (Max) | 0.878" (22.30mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP385E2822BJI02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 5% 2.5KVDC RAD | 94% | View |
| R747N1820JM00K | KEMET | CAP FILM METAL RAD POLYPROP | 89% | View |
| R76TI182050H4J | KEMET | CAP FILM 8200PF 5% 1.6KVDC RAD | 85% | View |
| MKP385282085JC02R0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 5% 850VDC RADIAL | 65% | View |
| BFC246756822 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 5% 400VDC RADIAL | 56% | View |
| BFC237185822 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 10% 400VDC RAD | 56% | View |
Submit your RFQ for ECW-HC3F822JQ and get a quote within 24 hours.
