Panasonic Electronic Components

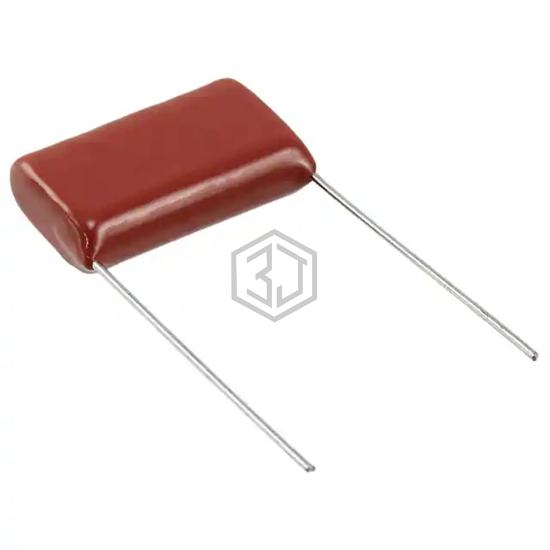

CAP FILM 10000PF 5% 3KVDC RADIAL
ECW-HC3F103J is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 10000PF 5% 3KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 3000V (3kV), package / case Radial.
In Stock: 9,122
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 1060V (1.06kV) |
| Voltage Rating - DC | 3000V (3kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.016" L x 0.323" W (25.80mm x 8.20mm) |
| Height - Seated (Max) | 0.634" (16.10mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R76QF21005050J | KEMET | FILM, RADIAL, PULSE, DOUBLE META | 77% | View |
| B32911A3103M189 | EPCOS - TDK Electronics | CAP FILM 10000PF 20% 760VDC RAD | 65% | View |
| BFC233990039 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10000PF 10% 630VDC RAD | 61% | View |
| R46KF2100DQN0M | KEMET | CAP FILM 10000PF 20% 560VDC RAD | 59% | View |
| BFC237051103 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10000PF 10% 400VDC RAD | 56% | View |
| MKP383310025JCA2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10000PF 5% 250VDC RAD | 56% | View |
