Panasonic Electronic Components

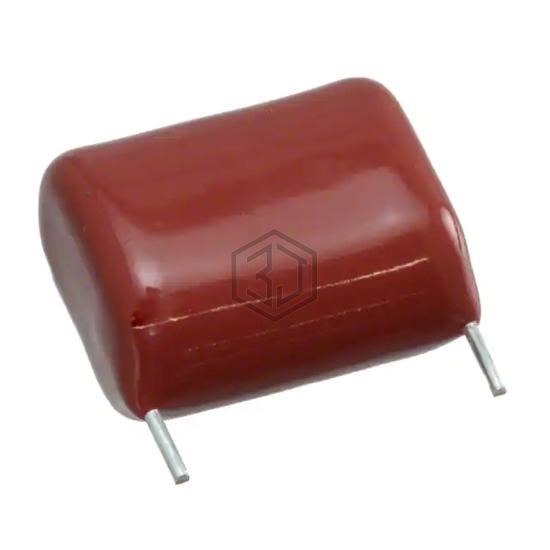

CAP FILM 0.08UF 5% 1.25KVDC RAD
ECW-HC3B803JA is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.08UF 5% 1.25KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 1250V (1.25kV), package / case Radial.
In Stock: 605
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.08 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 450V |
| Voltage Rating - DC | 1250V (1.25kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.815" L x 0.472" W (20.70mm x 12.00mm) |
| Height - Seated (Max) | 0.807" (20.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.689" (17.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
Submit your RFQ for ECW-HC3B803JA and get a quote within 24 hours.
