Panasonic Electronic Components
CAP FILM 4700PF 3% 1.6KVDC RAD

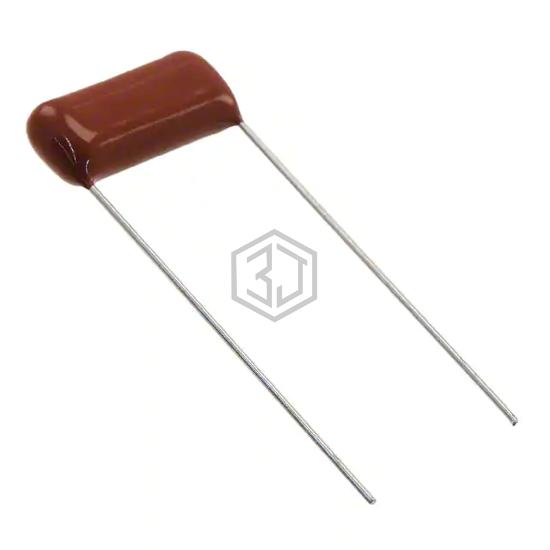

ECW-HA3C472H is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 4700PF 3% 1.6KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 1600V (1.6kV), package / case Radial.
In Stock: 1,051
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 pF |
| Tolerance | ±3% |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.701" L x 0.252" W (17.80mm x 6.40mm) |
| Height - Seated (Max) | 0.358" (9.10mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
Submit your RFQ for ECW-HA3C472H and get a quote within 24 hours.
