Panasonic Electronic Components
CAP FILM 10000PF 5% 1.6KVDC RAD

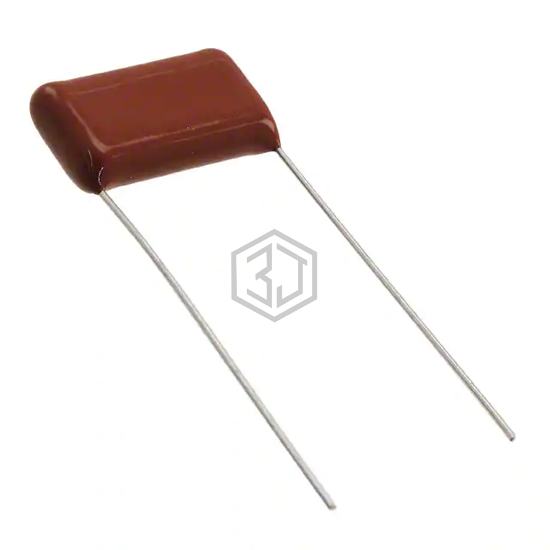

ECW-HA3C103J is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 10000PF 5% 1.6KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 1600V (1.6kV), package / case Radial.
In Stock: 5,945
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.799" L x 0.252" W (20.30mm x 6.40mm) |
| Height - Seated (Max) | 0.484" (12.30mm) |
| Termination | PC Pins |
| Lead Spacing | 0.689" (17.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP385310250JIM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10000PF 5% 2.5KVDC RAD | 90% | View |
| MKP385310125JC02Z0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10000PF 5% 1.25KVDC RAD | 90% | View |
| R60QI21004000K | KEMET | CAP FILM 10000PF 10% 1KVDC RAD | 79% | View |
| 103MWR630K | Cornell Dubilier / Illinois Capacitor | CAP FILM 10000PF 630VDC AXIAL | 71% | View |
| 168103J400F-F | Cornell Dubilier Electronics (CDE) | CAP FILM 10000PF 5% 400VDC RAD | 64% | View |
| MKP385310025JB02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10000PF 5% 250VDC RAD | 57% | View |
Submit your RFQ for ECW-HA3C103J and get a quote within 24 hours.
