Panasonic Electronic Components
CAP FILM 8200PF 5% 1.25KVDC RAD

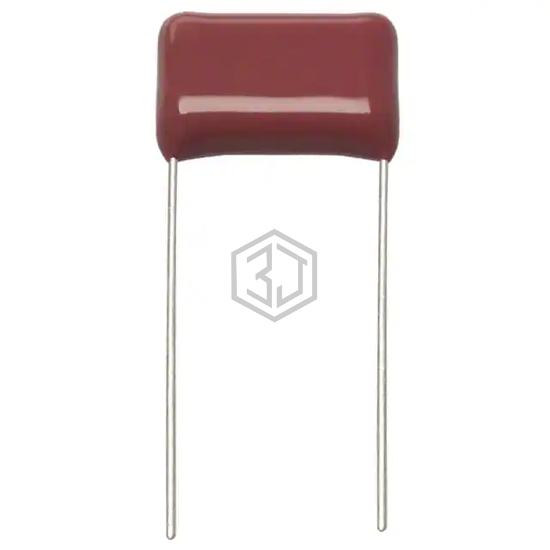

ECW-H12822JV is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 8200PF 5% 1.25KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 1250V (1.25kV), package / case Radial.
In Stock: 5,529
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 354V |
| Voltage Rating - DC | 1250V (1.25kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709" L x 0.295" W (18.00mm x 7.50mm) |
| Height - Seated (Max) | 0.610" (15.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP385282125JFP2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 5% 1.25KVDC RAD | 97% | View |
| BFC237590173 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 5% 2KVDC RADIAL | 86% | View |
| ECQ-E10822RJF | Panasonic Electronic Components | CAP FILM 8200PF 5% 1KVDC RADIAL | 83% | View |
| BFC236857822 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 5% 400VDC RADIAL | 78% | View |
| BFC236655822 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 10% 400VDC RAD | 78% | View |
| BFC247058822 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8200PF 10% 400VDC RAD | 76% | View |
Submit your RFQ for ECW-H12822JV and get a quote within 24 hours.
