Panasonic Electronic Components

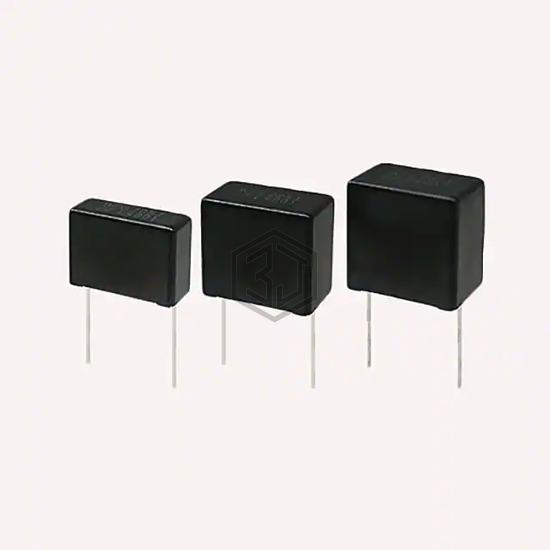

CAP FILM 2.2UF 5% 1.1KVDC RAD
ECW-FG1B225J is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 2.2UF 5% 1.1KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage rating - dc 1100V (1.1kV), package / case Radial.
In Stock: 9,484
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.2 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.531" W (31.50mm x 13.50mm) |
| Height - Seated (Max) | 1.142" (29.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | Automotive; High Frequency, Switching |
| Ratings | AEC-Q200 |
| Features | High Temperature |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-UAAF225K | Panasonic Electronic Components | CAP FILM 2.2UF 10% 275VAC RADIAL | 100% | View |
| ECW-FG70225K | Panasonic Electronic Components | CAP FILM 2.2UF 700VDC RADIAL | 92% | View |
| ECW-FG2J225Q1 | Panasonic Electronic Components | CAP FILM 2.2UF 10% 630VDC RADIAL | 90% | View |
| R46KR422000M1K | KEMET | CAP FILM 2.2UF 10% 560VDC RAD | 88% | View |
| R71XI422050H0K | KEMET | FILM, RADIAL, PULSE, SINGLE META | 84% | View |
| MMP4W2P2K-F | Cornell Dubilier Electronics (CDE) | CAP FILM 2.2UF 10% 400VDC AXIAL | 82% | View |
Submit your RFQ for ECW-FG1B225J and get a quote within 24 hours.
