Panasonic Electronic Components
CAP FILM 2UF 5% 1.1KVDC RADIAL

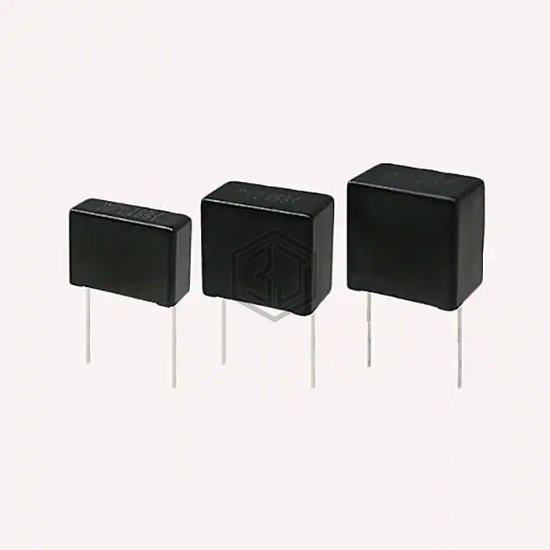

ECW-FG1B205JA is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 2UF 5% 1.1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage rating - dc 1100V (1.1kV), package / case Radial.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.472" W (31.50mm x 12.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | Automotive; High Frequency, Switching |
| Ratings | AEC-Q200 |
| Features | High Temperature |
Submit your RFQ for ECW-FG1B205JA and get a quote within 24 hours.
