Panasonic Electronic Components

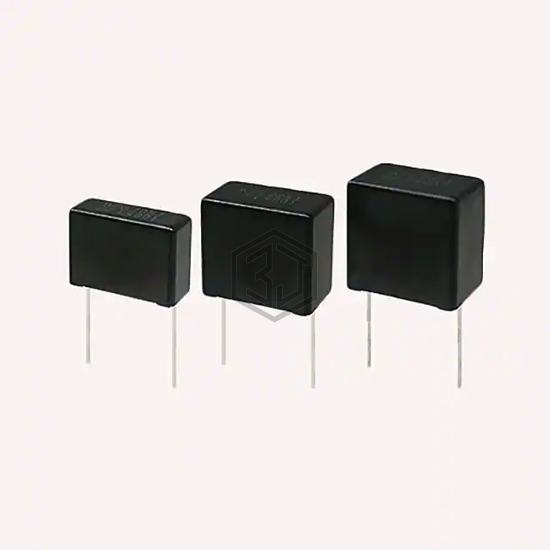

CAP FILM 1.5UF 5% 1.1KVDC RAD
ECW-FG1B155JA is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 1.5UF 5% 1.1KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage rating - dc 1100V (1.1kV), package / case Radial.
In Stock: 506
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1.5 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.472" W (31.50mm x 12.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | Automotive; High Frequency, Switching |
| Ratings | AEC-Q200 |
| Features | High Temperature |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| X2Q3155KV1B0320220130ES0 | Songtian Electronics Co., Ltd - use 4378 | X2 310VAC 1.5UF 10% P=27.5MM W32 | 100% | View |
| B32673P6155J000 | EPCOS - TDK Electronics | CAP FILM 1.5UF 5% 630VDC RADIAL | 90% | View |
| 73250-01 | Iskra | KNB1560 1U5 10% 275V L3 R27.5 | 90% | View |
| 12545-06 | Iskra | KNB1560 1U5 5% 275V L25 R22.5 CD | 90% | View |
| 11176-06 | Iskra | KNB1560 1U5 5% 275V L25 R22.5 | 90% | View |
| R46KR415040M1K | KEMET | CAP FILM 1.5UF 10% 560VDC RADIAL | 88% | View |
Submit your RFQ for ECW-FG1B155JA and get a quote within 24 hours.
