Panasonic Electronic Components

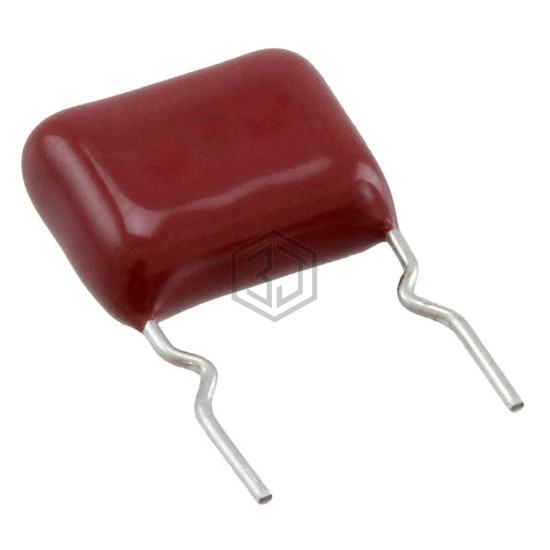

CAP FILM 0.047UF 5% 630VDC RAD
ECW-FD2J473JQ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.047UF 5% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 9,714
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.047 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 141V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.496" L x 0.173" W (12.60mm x 4.40mm) |
| Height - Seated (Max) | 0.504" (12.80mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP385347063JD02G0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 5% 630VDC RAD | 94% | View |
| MKP385347063JFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 5% 630VDC RAD | 94% | View |
| BFC238321473 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 5% 630VDC RAD | 94% | View |
| MPX20W2470FE00MJ00 | WIMA | MP 3-X2 0.047 F 250 VAC 7X15X19 | 92% | View |
| 77094-22 | Iskra | KNB1560 U047 20% 275V L3 R10 | 91% | View |
| MKS4J024703G00KSSD | WIMA | CAP FILM 0.047UF 10% 630VDC RAD | 86% | View |
Submit your RFQ for ECW-FD2J473JQ and get a quote within 24 hours.
