Panasonic Electronic Components

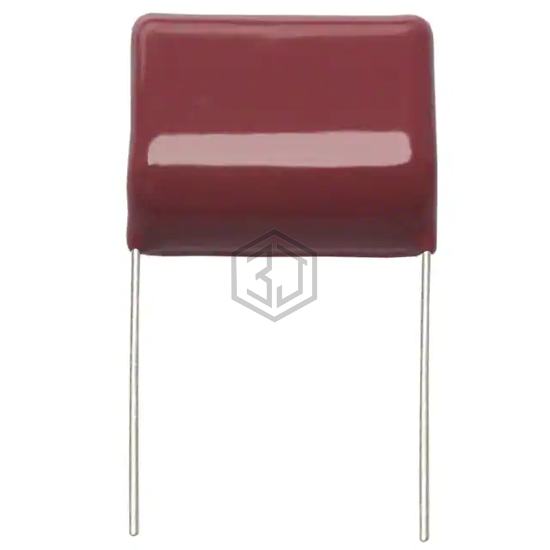

CAP FILM 0.82UF 3% 630VDC RADIAL
ECW-F6824HL is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.82UF 3% 630VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 483
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.82 µF |
| Tolerance | ±3% |
| Voltage Rating - AC | 223V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.102" L x 0.547" W (28.00mm x 13.90mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.984" (25.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CMPX824K27AL150B-18X21X12 | Trigon Components | CMPX-X2 FILM CAP 0.82UF 10% | 96% | View |
| MKP385E48212KPP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.82UF 10% 1.25KVDC RAD | 81% | View |
| MKP383482025JII2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.82UF 5% 250VDC RADIAL | 79% | View |
| BFC247932824 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.82UF 5% 160VDC RADIAL | 70% | View |
| BFC236825824 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.82UF 10% 100VDC RAD | 60% | View |
| B32529C0824K000 | EPCOS - TDK Electronics | CAP FILM 0.82UF 10% 63VDC RADIAL | 56% | View |
Submit your RFQ for ECW-F6824HL and get a quote within 24 hours.
