Panasonic Electronic Components
CAP FILM 0.68UF 5% 250VDC RADIAL

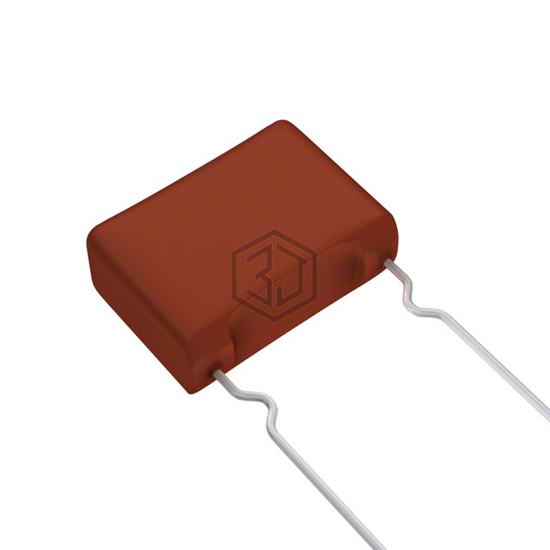

ECW-F2684RJA is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.68UF 5% 250VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 250V, package / case Radial.
In Stock: 7,628
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.68 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.713" L x 0.291" W (18.10mm x 7.40mm) |
| Height - Seated (Max) | - |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-E2684JF | Panasonic Electronic Components | CAP FILM 0.68UF 5% 250VDC RADIAL | 100% | View |
| BFC238310684 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 5% 400VDC RADIAL | 92% | View |
| R60MN3680AA30M | KEMET | CAP FILM AUTOMOTIVE | 92% | View |
| F17724682290 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 20% 630VDC RAD | 84% | View |
| ECW-FD2J684KQ | Panasonic Electronic Components | CAP FILM 0.68UF 10% 630VDC RAD | 84% | View |
| MKP385468160JPI4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 5% 1.6KVDC RAD | 71% | View |
Submit your RFQ for ECW-F2684RJA and get a quote within 24 hours.
