Panasonic Electronic Components

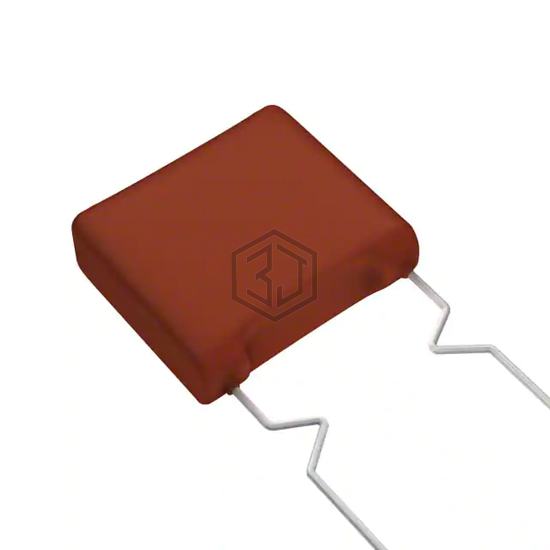

CAP FILM 0.56UF 3% 250VDC RADIAL
ECW-F2564HAQ is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.56UF 3% 250VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 250V, package / case Radial.
In Stock: 2,651
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.56 µF |
| Tolerance | ±3% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.713" L x 0.272" W (18.10mm x 6.90mm) |
| Height - Seated (Max) | 0.783" (19.90mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-E2564RKB | Panasonic Electronic Components | CAP FILM 0.56UF 10% 250VDC RAD | 100% | View |
| ECQ-E6564KFW | Panasonic Electronic Components | CAP FILM 0.56UF 10% 630VDC RAD | 84% | View |
| ECQ-E1564KFB | Panasonic Electronic Components | CAP FILM 0.56UF 10% 100VDC RAD | 84% | View |
| ECQ-E6564JF | Panasonic Electronic Components | CAP FILM 0.56UF 5% 630VDC RADIAL | 84% | View |
| MKP385E45663JKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.56UF 5% 630VDC RAD | 84% | View |
| B32036A4564M000 | EPCOS - TDK Electronics | CAP FILM 0.56UF 20% 1KVDC RADIAL | 75% | View |
Submit your RFQ for ECW-F2564HAQ and get a quote within 24 hours.
