Panasonic Electronic Components

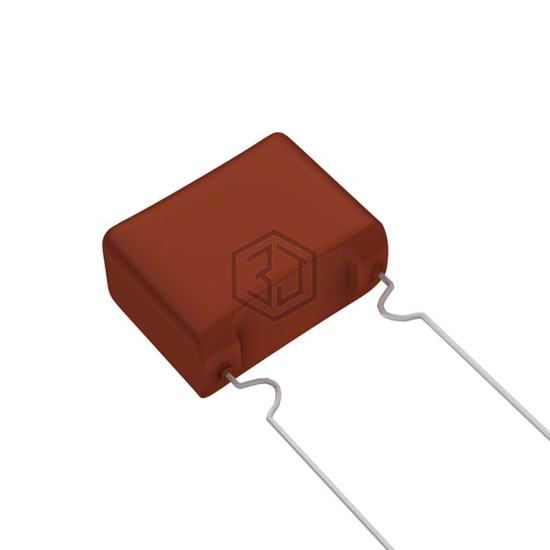

CAP FILM 3.9UF 3% 250VDC RADIAL
ECW-F2395HAB is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 3.9UF 3% 250VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 250V, package / case Radial.
In Stock: 7,244
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3.9 µF |
| Tolerance | ±3% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.937" L x 0.531" W (23.80mm x 13.50mm) |
| Height - Seated (Max) | 1.016" (25.80mm) |
| Termination | PC Pins |
| Lead Spacing | 0.492" (12.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-E2395KF | Panasonic Electronic Components | CAP FILM 3.9UF 10% 250VDC RADIAL | 100% | View |
| MKP385539040JKI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3.9UF 5% 400VDC RADIAL | 92% | View |
| MKP385E53940KPM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3.9UF 10% 400VDC RAD | 92% | View |
| ECW-FG60395JA | Panasonic Electronic Components | CAP FILM 3.9UF 600VDC RADIAL | 84% | View |
| F339X253930KKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3.9UF 10% 630VDC RADIAL | 84% | View |
| ECW-FD2J395JQ | Panasonic Electronic Components | CAP FILM 3.9UF 5% 630VDC RADIAL | 84% | View |
