Panasonic Electronic Components

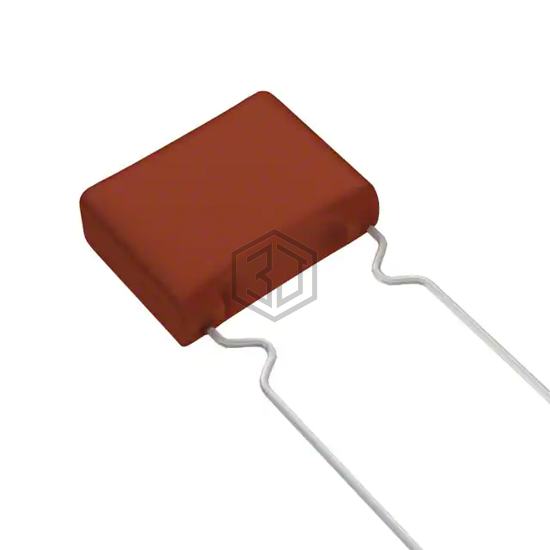

CAP FILM 0.27UF 5% 250VDC RADIAL
ECW-F2274JAB is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.27UF 5% 250VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 250V, package / case Radial.
In Stock: 4,844
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.27 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.512" L x 0.268" W (13.00mm x 6.80mm) |
| Height - Seated (Max) | 0.685" (17.40mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC2373FM274MD | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 5% 400VDC RADIAL | 92% | View |
| F17724272030 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 10% 630VDC RAD | 84% | View |
| MKP385E42763KKI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 10% 630VDC RAD | 84% | View |
| BFC236612274 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 5% 63VDC RADIAL | 76% | View |
| F340Y242730MIP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 20% 1KVDC RAD | 75% | View |
| F340Y242730MKI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.27UF 20% 1KVDC RAD | 75% | View |
Submit your RFQ for ECW-F2274JAB and get a quote within 24 hours.
