Panasonic Electronic Components

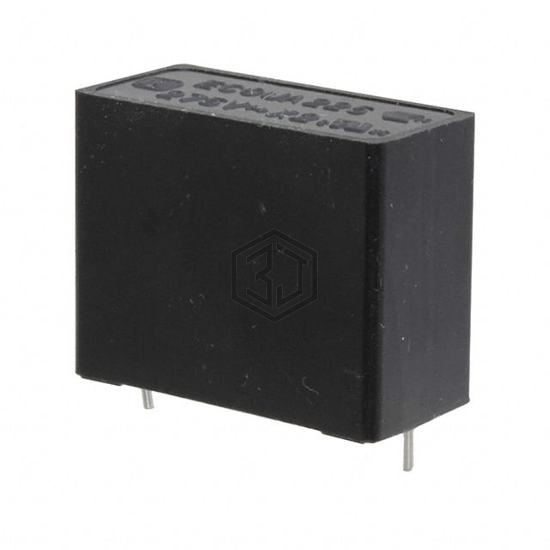

CAP FILM 2.2UF 20% 275VAC RAD
ECQ-UAAF225SA is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 2.2UF 20% 275VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage rating - ac 275V, package / case Radial.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 275V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.220" L x 0.571" W (31.00mm x 14.50mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200, X2 |
| Features | - |
Submit your RFQ for ECQ-UAAF225SA and get a quote within 24 hours.
