Panasonic Electronic Components

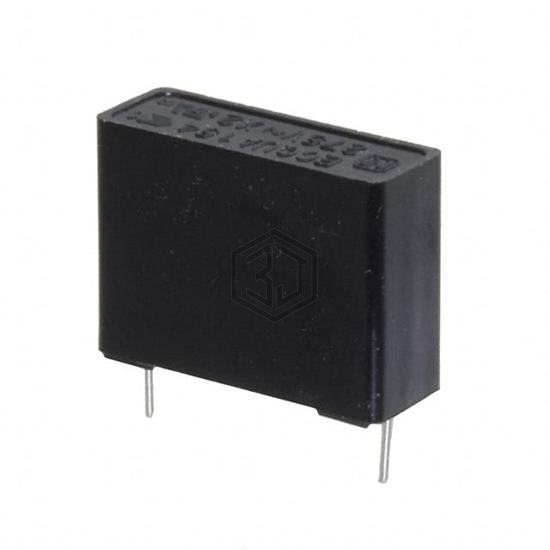

CAP FILM 0.1UF 10% 275VAC RAD
ECQ-UAAF104TA is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.1UF 10% 275VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage rating - ac 275V, package / case Radial.
In Stock: 1,878
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 275V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.689" L x 0.197" W (17.50mm x 5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200, X2 |
| Features | - |
Submit your RFQ for ECQ-UAAF104TA and get a quote within 24 hours.
