Panasonic Electronic Components
CAP FILM 0.1UF 10% 275VAC RAD

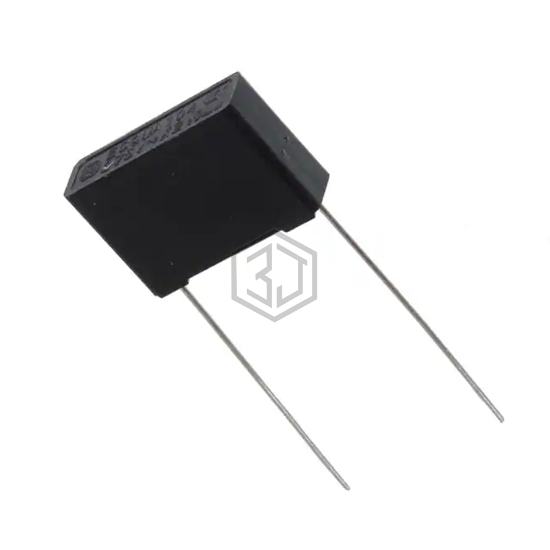

ECQ-UAAF104T1 is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.1UF 10% 275VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage rating - ac 275V, package / case Radial.
In Stock: 5,977
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 275V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.689" L x 0.197" W (17.50mm x 5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200, X2 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R46KI310055M1K | KEMET | 0,1 U 275V | 100% | View |
| R463I310050M1K | KEMET | CAP FILM 0.1UF 10% 630VDC RADIAL | 98% | View |
| 19600-06 | Iskra | KNB1560 U1 20% 300V L4 R15 | 98% | View |
| B32671P5104K000 | EPCOS - TDK Electronics | CAP FILM 0.1UF 10% 520VDC RADIAL | 94% | View |
| R76TN3100SE40K | KEMET | CAP FILM 0.1UF 10% 1.6KVDC RAD | 85% | View |
| MKP385410016JC02G0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.1UF 5% 160VDC RADIAL | 84% | View |
