Panasonic Electronic Components

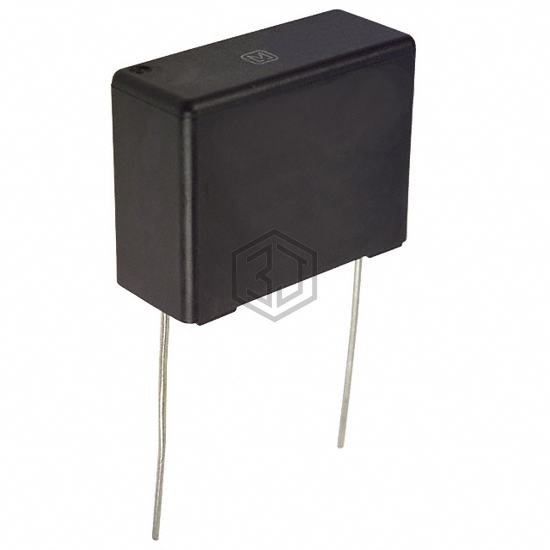

CAP FILM 0.47UF 20% 300VAC RAD
ECQ-U3A474MG is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.47UF 20% 300VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage rating - ac 300V, package / case Radial.
In Stock: 4,071
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.47 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.024" L x 0.413" W (26.00mm x 10.50mm) |
| Height - Seated (Max) | 0.807" (20.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X1 |
| Features | - |
ECQ-U3A474MG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 19236-06 | Iskra | KNB1530 U47 20% 300V L40 R27.5 | 100% | View |
| BFC233848113 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.47UF 20% 800VDC RAD | 100% | View |
| R463I347052M1K | KEMET | CAP FILM SAFETY/EMI SUPP RAD | 99% | View |
| F339X144748MKP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.47UF 20% 1KVDC RADIAL | 92% | View |
| B32522C3474K289 | EPCOS - TDK Electronics | CAP FILM 0.47UF 10% 250VDC RAD | 89% | View |
| DPM2P47K-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.47UF 10% 250VDC RAD | 89% | View |
Submit your RFQ for ECQ-U3A474MG and get a quote within 24 hours.
