Panasonic Electronic Components
CAP FILM 0.033UF 20% 300VAC RAD

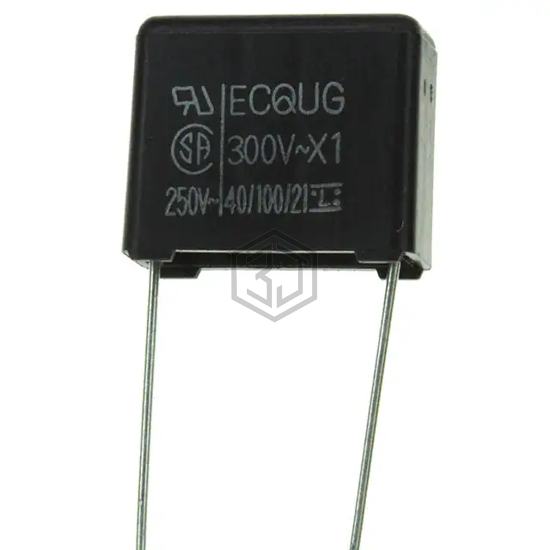

ECQ-U3A333MG is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.033UF 20% 300VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage rating - ac 300V, package / case Radial.
In Stock: 8,651
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.033 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.591" L x 0.236" W (15.00mm x 6.00mm) |
| Height - Seated (Max) | 0.532" (13.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.492" (12.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X1 |
| Features | - |
ECQ-U3A333MG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| F339MX233331KD02G0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 10% 630VDC RAD | 99% | View |
| F861KM333K310A | KEMET | CAP FILM POLYPROP RAD X2 | 99% | View |
| F461KM333R630L | KEMET | .033UF 630V | 97% | View |
| BFC236955333 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 10% 400VDC RAD | 94% | View |
| MKT1813333634 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 5% 630VDC AXIAL | 94% | View |
| MKP1841333205M | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 10% 2KVDC RAD | 85% | View |
Submit your RFQ for ECQ-U3A333MG and get a quote within 24 hours.
