Panasonic Electronic Components

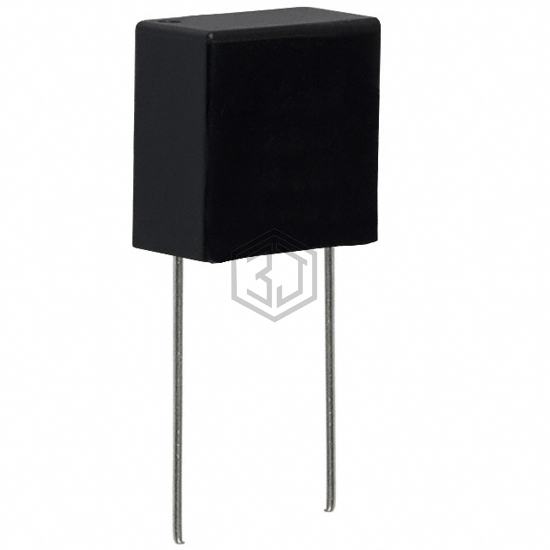

CAP FILM 0.22UF 20% 300VAC RAD
ECQ-U3A224MG is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.22UF 20% 300VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage rating - ac 300V, package / case Radial.
In Stock: 5,969
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.22 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709" L x 0.354" W (18.00mm x 9.00mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X1 |
| Features | - |
ECQ-U3A224MG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R463I322000L2M | KEMET | CAP FILM 0.22UF 20% 630VDC RAD | 99% | View |
| PME261KC6220KR30 | KEMET | CAP FILM 0.22UF 10% 400VDC RAD | 94% | View |
| R474N32205001K | KEMET | CAP FILM 0.22UF 10% 1KVDC RADIAL | 93% | View |
| B32914A5224K000 | EPCOS - TDK Electronics | CAP FILM 0.22UF 10% 530VAC RAD | 90% | View |
| MKP1845422134 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 5% 1.6KVDC AXIAL | 86% | View |
| BFC246751224 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.22UF 10% 100VDC RAD | 72% | View |
Submit your RFQ for ECQ-U3A224MG and get a quote within 24 hours.
