Panasonic Electronic Components

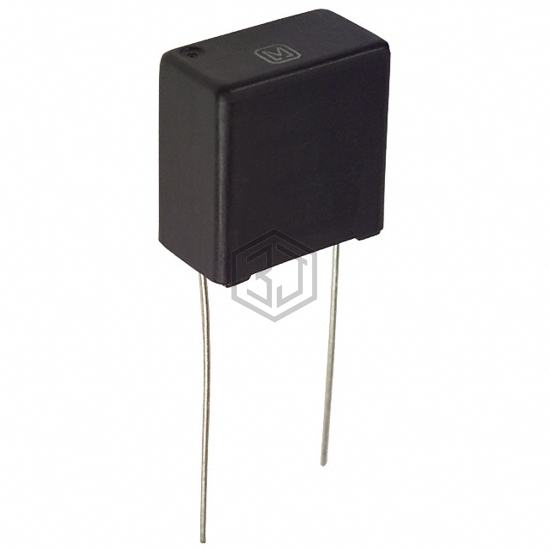

CAP FILM 0.068UF 20% 275VAC RAD
ECQ-U2A683MG is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.068UF 20% 275VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage rating - ac 275V, package / case Radial.
In Stock: 5,410
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.068 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 275V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.591" L x 0.315" W (15.00mm x 8.00mm) |
| Height - Seated (Max) | 0.610" (15.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.492" (12.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X2 |
| Features | - |
ECQ-U2A683MG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1840368165 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 10% RADIAL | 100% | View |
| MKT1822368405W | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 10% 400VDC RAD | 94% | View |
| B32671L4683J000 | EPCOS - TDK Electronics | CAP FILM 0.068UF 5% 400VDC RAD | 94% | View |
| BFC236821683 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 10% 100VDC RAD | 74% | View |
| BFC246707683 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 5% 100VDC RAD | 74% | View |
| BFC246705683 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.068UF 5% 100VDC RAD | 74% | View |
Submit your RFQ for ECQ-U2A683MG and get a quote within 24 hours.
