Panasonic Electronic Components

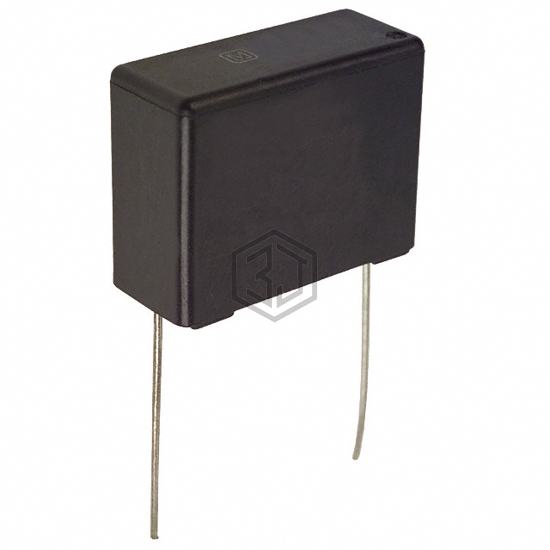

CAP FILM 0.47UF 20% 275VAC RAD
ECQ-U2A474MG is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.47UF 20% 275VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage rating - ac 275V, package / case Radial.
In Stock: 2,350
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.47 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 275V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.004" L x 0.413" W (25.50mm x 10.50mm) |
| Height - Seated (Max) | 0.807" (20.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X2 |
| Features | - |
ECQ-U2A474MG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECW-FD2J474KC | Panasonic Electronic Components | CAP FILM 0.47UF 10% 630VDC RAD | 100% | View |
| R46KN347045N0K | KEMET | 0,47 U 275V | 100% | View |
| R46KI347045P0K | KEMET | 0,47 U 275V | 100% | View |
| R71VI3470NE30K | KEMET | 0,47 U 520V | 98% | View |
| BFC247945474 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.47UF 5% 250VDC RADIAL | 90% | View |
| R76QR347050H3J | KEMET | CAP FILM 0.47UF 5% 1KVDC RADIAL | 86% | View |
Submit your RFQ for ECQ-U2A474MG and get a quote within 24 hours.
