Panasonic Electronic Components
CAP FILM 0.047UF 20% 250VAC RAD

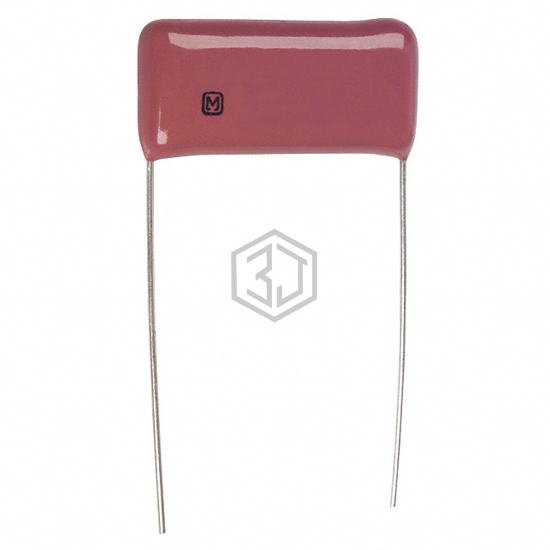

ECQ-U2A473MN is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.047UF 20% 250VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - ac 250V, package / case Radial.
In Stock: 6,597
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.047 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.004" L x 0.276" W (25.50mm x 7.00mm) |
| Height - Seated (Max) | 0.610" (15.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.846" (21.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X2 |
| Features | - |
ECQ-U2A473MN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC246860473 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF RADIAL | 100% | View |
| MKP385E34763KFP2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 10% 630VDC RAD | 98% | View |
| BFC233868123 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 20% 1KVDC RAD | 97% | View |
| ECQ-E12473JF | Panasonic Electronic Components | CAP FILM 0.047UF 5% 1.25KVDC RAD | 88% | View |
| MKP385E3471AKIM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.047UF 10% 1.6KVDC RAD | 86% | View |
| MKP1T024706A00KSSD | WIMA | CAP FILM 0.047UF 10% 1.6KVDC RAD | 83% | View |
Submit your RFQ for ECQ-U2A473MN and get a quote within 24 hours.
