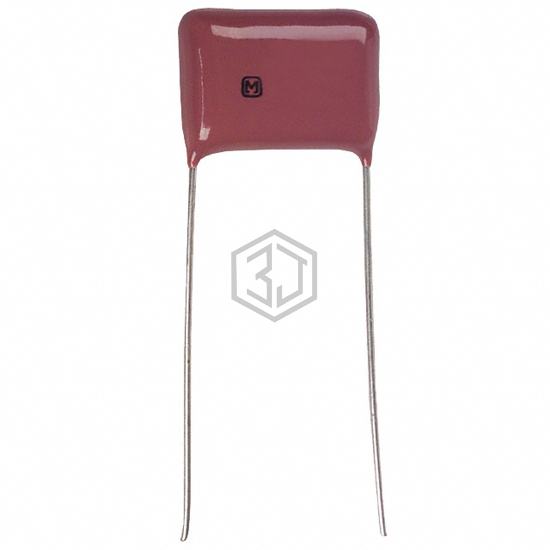

Panasonic Electronic Components
CAP FILM 4700PF 20% 250VAC RAD
ECQ-U2A472MN is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 4700PF 20% 250VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - ac 250V, package / case Radial.
In Stock: 4,548
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 pF |
| Tolerance | ±20% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.669" L x 0.256" W (17.00mm x 6.50mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.531" (13.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X2 |
| Features | - |
ECQ-U2A472MN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 70895-22 | Iskra | KNB2520 4700P 10% 250V L6 R10 | 100% | View |
| MPY20W1470FB00MSC9 | WIMA | MP 3-Y2 4700 PF 250 VAC 5X10X13. | 100% | View |
| BFC237510472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 630VDC RADIAL | 97% | View |
| EFY2S30K472A022LH | Eaton - Electronics Division | CAP FILM 0.0047UF 10% 300VAC RAD | 97% | View |
| MKP385247040JBI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 400VDC RADIAL | 96% | View |
| B32651A7472J000 | EPCOS - TDK Electronics | CAP FILM 4700PF 5% 1.25KVDC RAD | 90% | View |
Submit your RFQ for ECQ-U2A472MN and get a quote within 24 hours.
