Panasonic Electronic Components

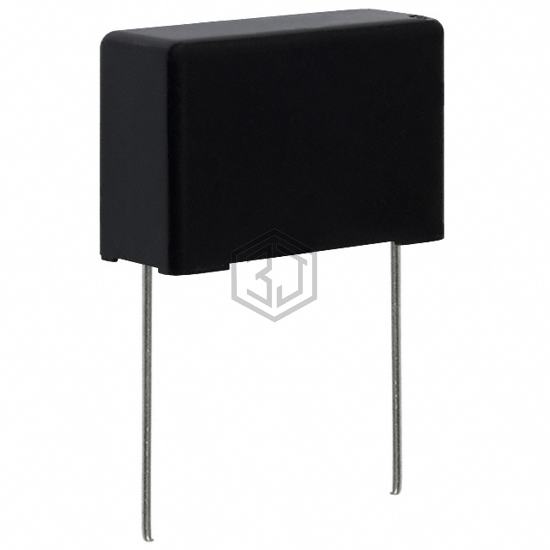

CAP FILM 0.39UF 20% 250VAC RAD
ECQ-U2A394MV is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.39UF 20% 250VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - ac 250V, package / case Radial.
In Stock: 6,903
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.39 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.201" L x 0.472" W (30.50mm x 12.00mm) |
| Height - Seated (Max) | 0.807" (20.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X2 |
| Features | - |
ECQ-U2A394MV is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-UAAV394S1 | Panasonic Electronic Components | CAP FILM 0.39UF 20% 310VAC RAD | 96% | View |
| MKP385E43940JFP2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 5% 400VDC RAD | 96% | View |
| MKP385439200JPP4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 5% 2KVDC RADIAL | 82% | View |
| 160394K100F-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.39UF 10% 100VDC RAD | 76% | View |
| BFC237228394 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 10% 100VDC RAD | 76% | View |
| BFC2373EM394MD | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.39UF 5% 250VDC RADIAL | 76% | View |
Submit your RFQ for ECQ-U2A394MV and get a quote within 24 hours.
