Panasonic Electronic Components
CAP FILM 0.039UF 20% 250VAC RAD

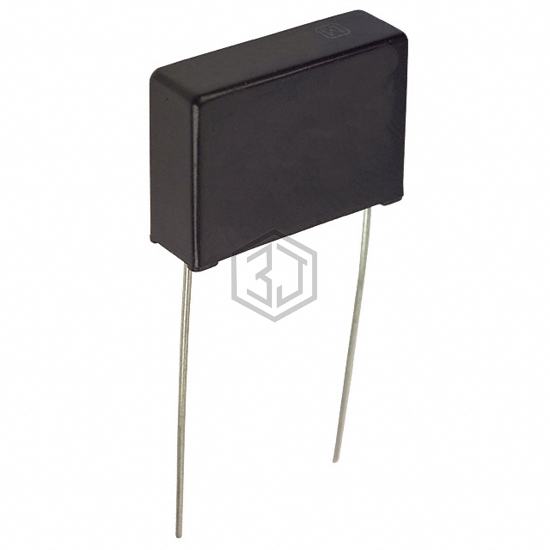

ECQ-U2A393MV is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.039UF 20% 250VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - ac 250V, package / case Radial.
In Stock: 8,641
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.039 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.689" L x 0.217" W (17.50mm x 5.50mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X2 |
| Features | - |
ECQ-U2A393MV is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECW-FD2J393KQ | Panasonic Electronic Components | CAP FILM 0.039UF 10% 630VDC RAD | 100% | View |
| F881BT393M300R | KEMET | CAP FILM POLYPROP RAD Y2 | 97% | View |
| MKP385339040JCA2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.039UF 5% 400VDC RAD | 96% | View |
| BFC242043903 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.039UF 2% 630VDC RAD | 92% | View |
| MKP385339025JBA2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.039UF 5% 250VDC RAD | 92% | View |
| BFC241913903 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.039UF 2% 400VDC RAD | 88% | View |
Submit your RFQ for ECQ-U2A393MV and get a quote within 24 hours.
