Panasonic Electronic Components

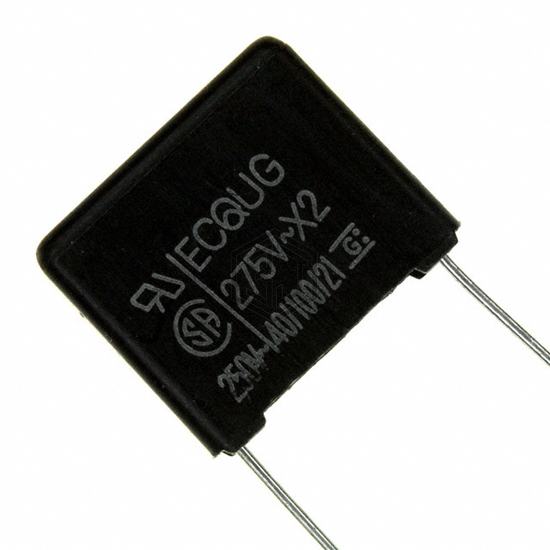

CAP FILM 0.033UF 20% 275VAC RAD
ECQ-U2A333MG is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 0.033UF 20% 275VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage rating - ac 275V, package / case Radial.
In Stock: 2,755
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.033 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 275V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.591" L x 0.236" W (15.00mm x 6.00mm) |
| Height - Seated (Max) | 0.532" (13.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.492" (12.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X2 |
| Features | - |
ECQ-U2A333MG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC246860333 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF RADIAL | 100% | View |
| ECW-H8333JV | Panasonic Electronic Components | CAP FILM .033UF 5% 800VDC RAD | 100% | View |
| MPRY2W2330FH00MD00 | WIMA | MP 3R-Y2 0.033 F 300 VAC 8X20X28 | 98% | View |
| MKP383333040JDA2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 5% 400VDC RAD | 94% | View |
| BFC237175333 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 10% 250VDC RAD | 90% | View |
| MKP1845333204 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.033UF 5% 2KVDC AXIAL | 83% | View |
Submit your RFQ for ECQ-U2A333MG and get a quote within 24 hours.
