Panasonic Electronic Components
CAP FILM 3300PF 20% 250VAC RAD

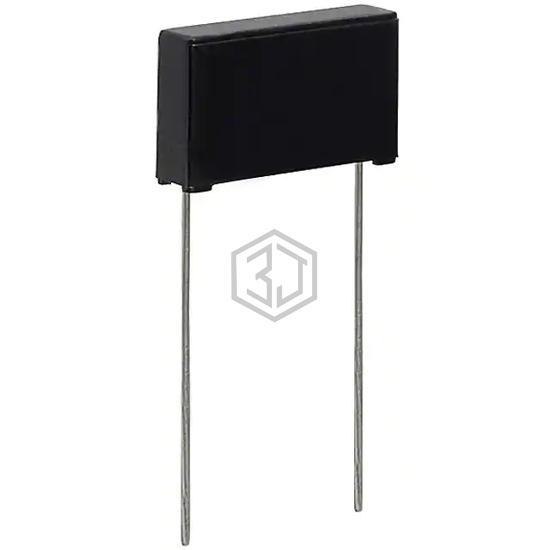

ECQ-U2A332MV is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 3300PF 20% 250VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - ac 250V, package / case Radial.
In Stock: 4,019
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 pF |
| Tolerance | ±20% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.689" L x 0.157" W (17.50mm x 4.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X2 |
| Features | - |
ECQ-U2A332MV is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32529C6332K000 | EPCOS - TDK Electronics | CAP FILM 3300PF 10% 400VDC RAD | 96% | View |
| BFC247052332 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3300PF 5% 400VDC RADIAL | 96% | View |
| MKT1818233404G | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3300PF 5% 400VDC RADIAL | 96% | View |
| B32621A6332K000 | EPCOS - TDK Electronics | CAP FILM 3300PF 10% 630VDC RAD | 92% | View |
| BFC238352332 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 3300PF 5% 1.6KVDC RAD | 86% | View |
| PPB2201330KEL | Nichicon | FILM CAP BOXED RADIAL | 82% | View |
Submit your RFQ for ECQ-U2A332MV and get a quote within 24 hours.
